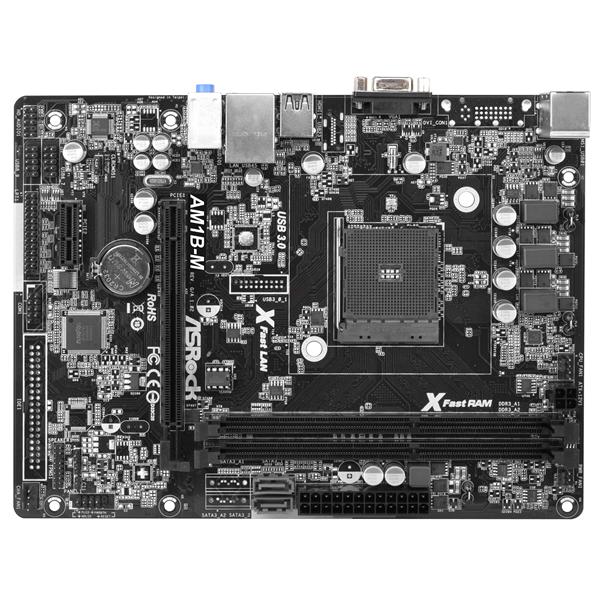

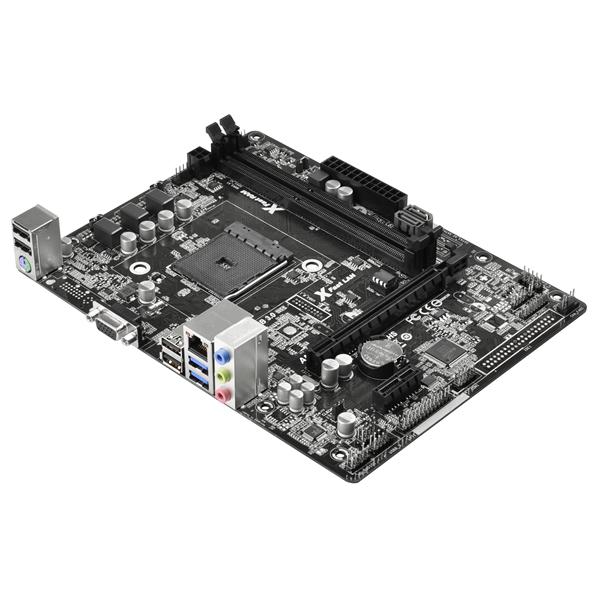

Name: Scheda Madre AsRock AM1B-M Socket AM1 DDR3 SATA3 USB3 MicroATX AsRock AM1B-M
Brand: AsRock
SKU: EK00022390
Price: 34.0 EUR
Availability: InStock

Descrizione

General
CPU	- Supports AMD AM1 Socket A-series and E-series Quad-Core/Dual-Core APU up to 25W
Memory	- 2 x DDR3 DIMM Slots - Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- 32Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3.1 support - DRAM Voltage multi-adjustment
Audio, Video and Networking
Graphics	- Integrated AMD Radeon™ R3 Series Graphics in A-series / E-series APU - DirectX 11.1, Pixel Shader 5.0 - Max. shared memory 4GB - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
Audio	- 5.1 CH HD Audio (Realtek ALC662 Audio Codec) - Supports Full Spike Protection
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Realtek RealWoW! Technology - Supports Wake-On-LAN - Supports Full Spike Protection - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Expansion / Connectivity
Slots	- 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode) - 1 x PCI Express 2.0 x1 Slot
Storage	- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector	- 1 x Print Port Header - 1 x COM Port Header - 1 x Chassis Intrusion Header - 1 x TPM Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis Fan Connector (4-pin) - 1 x Power Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports Full Spike Protection)
Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 4 x USB 2.0 Ports (Supports Full Spike Protection) - 2 x USB 3.0 Ports (Supports Full Spike Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature	- ASRock A-Tuning - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock Internet Flash - ASRock UEFI Tech Service - ASRock Dehumidifier Function - ASRock Easy Driver Installer - ASRock Interactive UEFI - ASRock Fast Boot - ASRock Restart to UEFI - ASRock USB Key - ASRock FAN-Tastic Tuning - Hybrid Booster: - ASRock U-COP - Boot Failure Guard (B.F.G.) - Good Night LED
Hardware Monitor	- CPU/Chassis temperature sensing - CPU/Chassis/Power Fan Tachometer - CPU Quiet Fan - CPU Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor	- Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm - All Solid Capacitor design - High Density Glass Fabric PCB
OS	- Microsoft^® Windows^® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit
Certifications	- FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)

HAI SCELTO DI RIFIUTARE I COOKIE

Scheda Madre AsRock AM1B-M Socket AM1 DDR3 SATA3 USB3 MicroATX AsRock AM1B-M

Descrizione

Potrebbero interessarti anche:

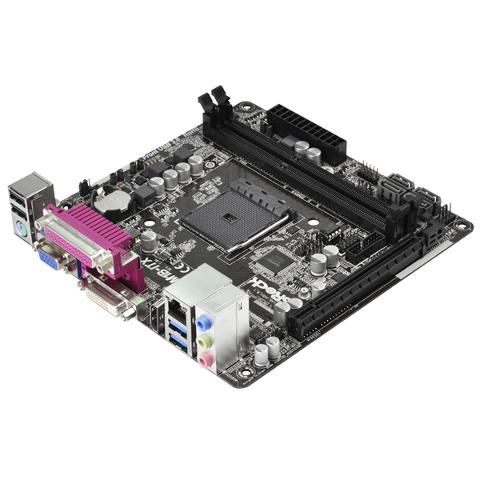

Scheda Madre AsRock AM1B-ITX Socket AM1 DDR3 SATA3 USB3 MiniITX AsRock AM1B-ITX
